MG Series MGRV8
Please Select the topic in which you want to enquire about....
| Max. Power | Max. torque | Max. speed |
| 190 PS @ 4750 RPM | 318 Nm @ 3200 RPM | 135 mph 0-60: 5.9secs |
Capacity: 3,950 cc
Number of cylinders: 8 in 90 degree Vee formation
Bore: 94mm
Stroke: 71.12mm
Compression ratio: 9.32:1
Fuel system: Lucas multi-point
Max. power: 190ps @ 4750 rpm
Max. torque: 318mm @ 3200 rpm
Performance: 0-60 mph (100 kph) 5.9seconds
Max speed :135 mph (230 kph)
Transmission: Rover LT77-5 speed manual Gearbox (Early Producation Cars)
Rover R380 � 5speed manual gearbox ( From VIN: 644 To End Of Production)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Final Drive Ratio 3.31 to 1
Suspension: front � Independent, double wishbone, coil springs and telescopic dampers with anti-roll bar.
Rear � Live axle with twin taper leaf elliptic springs and telescopic dampers. Twin lower torque control arms with anti roll bar.
Steering: Rack and pinion
Brakes: Front � 270 mm ventilated disks. Rear � 9" drums with servo assistance
Wheels: Cast alloy 15" x 6J
Tyres: 205/65 x VR15
Fuel: Unleaded 95RON - Capacity � 51 litres
- Maximum weight with full tank of fuel 1090Kg
-
Maximum Gross weight 1310Kg

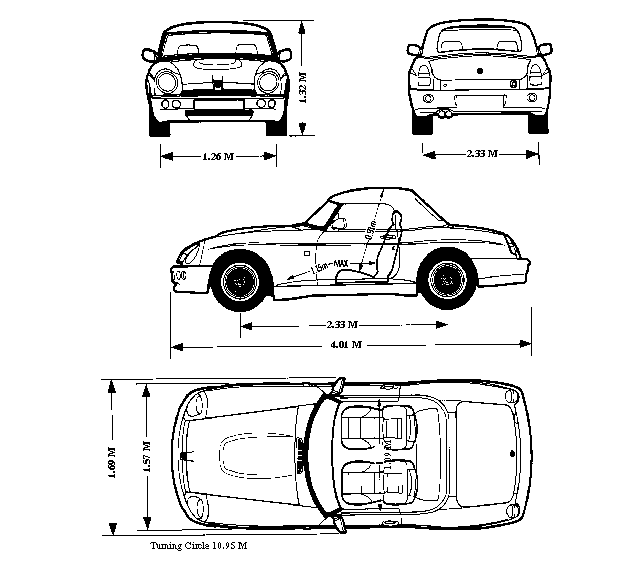

Dimensions: wheelbase -2330mm; Length � 4010mm; Front track � 1260mm; Rear track � 1330mm; Height � 1320mm; Width � 1694mm.
Price - £26,000
|
Note: Click on the Image to Enlarge...... |
 |

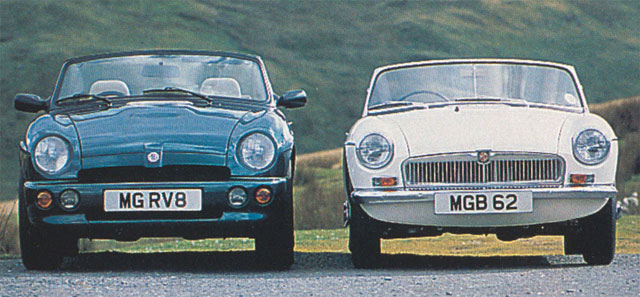

| Both MG’s share the same monocoque body shell although the body shell used on the RV8 is vastly improved against the original MGB specification body shells. The later body shells have better quality steel and are zinc coated, they are more consistent in preparation and paint methods greatly improved. Although both cars started with the same body shell the final specifications differ slightly. |
| MGRV8 Specifications | MG B Specifications | |
| 4010 mm | Body Length | 3894 mm |
| 1570 mm | Body Width | 1516 mm |
| 1320 mm | Height | 1255 mm |
| 1260 mm | Wheel track Front | 1252 mm |
| 1330 mm | Wheel track Rear | 1252 mm |
RV8 PRODUCTION CHANGES IN DESIGN & TECHNICAL SPECIFICATIONS:
ITEM OF CHANGE |
CHASSIS No. or VIN |
* Engine wiring harness |
281 on |
* Oil pressure switch |
281 on |
* Headlight surround stud |
312 on |
* Sill tread plate and screws |
313 on |
* Alternator mounting |
315 on |
* Tonneau cover |
340 on |
* Sill covers |
343 on |
* Various door fittings |
362 to 446 on |
* Luggage space carpet |
384 on |
* Distributor |
400 on |
* Bonnet release cable (Japan) |
446 on |
* Rear bumper |
446 on |
* Catalyst assembly (Japan) |
446 on |
* Air Conditioning (Japan) |
446 on |
* Front coil spring (air conditioning only) |
446 on |
* Road wheels & centres |
450 on |
* Windscreen frame |
451 on |
* Windscreen seal to dash |
451 on |
* Windscreen seal to header rail |
451 on |
* Windscreen seal to A posts |
451 on |
* Hood & door waist rail |
503 to 541 |
* Hood & door waist rail |
542 on |
* Door mirror cheaters |
542 on |
* Radio cables |
555 on |
* Under floor pipe assembly |
606 on |
* Windscreen foam packer |
622 on |
* Heater assembly |
640 on |
* Prop shaft bolts and nuts |
644 on |
* Gearbox manual transmission (TL77 to R380) |
644 on |
* Inlet manifold gasket |
644 on |
* Exhaust manifold gasket |
669 on |
* Control unit alarm |
703 on |
* Windscreen washer jets |
799 on |
* Main wiring harness |
813 to 1078 |
* Radio and auto changer |
890 on |
* Front wheel arch flares (Japan) |
971 on |
* Main wiring harness (Note A/C cars different again) |
1079 to 1325 |
* Front Wing Extentsions (eyebrows) discontinued on Jap Spec Cars |
1250 on |
* Fuel vapour separator |
1695 on |
Miscellaneous Items |
|
* Bonnet stay & bush |
No Data Available |
* Screws on slam panel |
No Data Available |
* Chassis number to boot surround |
No Data Available |
* Distributor shroud |
No Data Available |
* Pedal box top |
No Data Available |
* Console warning light |
No Data Available |
* Extra hood seam and pocket added to hood |
No Data Available |
* Seat pocket changed |
No Data Available |
MG RV8 BODY COLOUR AND TRIM COMBINATIONS
The VIN Plate attached to the vehicle includes a code to ensure accurate identification of body colour and trim.
This code and colour name should always be used when ordering replacement parts.
The colour names shown under body colour are related to those in the vehicle colour charts and the Rover Paint Refinishing Manual.
| Body Colour | Paint Code | VIN Paint Code | Trim Colour | Colur Code | VIN Trim Code |
|
Nightfire Red Pearlescent) |
BLVC 916 | COQ | Stone Beige | SMJ | SMJ |
|
Caribbean Blue (Pearlescent) |
BLVC 911 | UME | Stone Beige | SMJ | SMJ |
| Flame Red | BLVC 818 | COF | Stone Beige | SMJ | SMJ |
| Black | BLVC 644 | PMF | Stone Beige | SMJ | SMJ |
|
White Gold (Metallic) |
BLVC 933 | GMK | Stone Beige | SMJ | SMJ |
|
British Racing Green (Metallic) |
BLVC 617 | HNA | Stone Beige | SMJ | SMJ |
|
Le Mans Green (Pearlescent) |
BLVC 1202 | HPD | Stone Beige | SMJ | SMJ |
|
Oxford Blue (Pearlescent) |
BLVC 1203 | JSJ | Stone Beige | SMJ | SMJ |
|
Woodcote Green (Pearlescent) |
BLVC 1204 | HPE | Stone Beige | SMJ | SMJ |
|
Old English White (Metallic) |
BLVC 1205 | NNX | Stone Beige | SMJ | SMJ |
NB. The colours of Le Mans Green, Oxford Blue, Woodcote Green and Old
English White were an addition � 750 .
RV8 Vehicle Identification Plate Information:
Vehicle Information Identity Plate Information ( click here )
Engine : Rover V8
Capacity: 3,950 cc
Number of cylinders: 8 in 90 degree Vee formation
Bore: 94mm
Stroke: 71.12mm
Compression ratio: 9.32:1
Fuel system: Lucas multi-point
Max. power: 190ps @ 4750 rpm
Max. torque: 318mm @ 3200 rpm
Performance: 0-60 mph (100 kph) 5.9seconds
Max speed :135 mph (230 kph)
Transmission: Rover R380 – 5speed manual gearbox
Suspension: front – Independent, double wishbone, coil springs and telescopic dampers with anti-roll bar
Rear – Live axle with twin taper leaf elliptic springs and telescopic dampers. Twin lower torque control arms with anti roll bar
Steering: Rack and pinion
Brakes: Front – 270 mm ventilated disks. Rear – 9" drums with servo assistance
Wheels: Cast alloy 15" x 6J
Tyres: 205/65 x VR15
Fuel: Unleaded 95RON - Capacity – 51 litres
Weight: 1280Kg Gross weight
Dimensions: wheelbase -2330mm; Length – 4010mm; Front track – 1260mm; Rear track – 1330mm; Height – 1320mm; Width – 1694mm
Underneath Ground Clearance : 110mm or 4 1/2 inches
Disclaimer:- Some of this information was gathered from David Knowles Brilliant Publications
